Open Source Go Tooling

📊 gotestviz - Go Coverage Visualizer

A lightweight, interactive HTML dashboard generator for Go test coverage profiles. Created and maintained by Marudhu Pandiyan G.

View Repository on GitHub Report Issue

Project Overview

Interactive Go Test Coverage

gotestviz is a lightweight, interactive HTML dashboard generator for Go test code coverage. It parses standard Go coverage profiles (coverage.out), processes package and statement metrics, and generates an intuitive visual report directly opened in your browser.

Visual Previews

Screenshots & Dashboard Interface

Click any thumbnail below to view a full-sized preview of the interface:

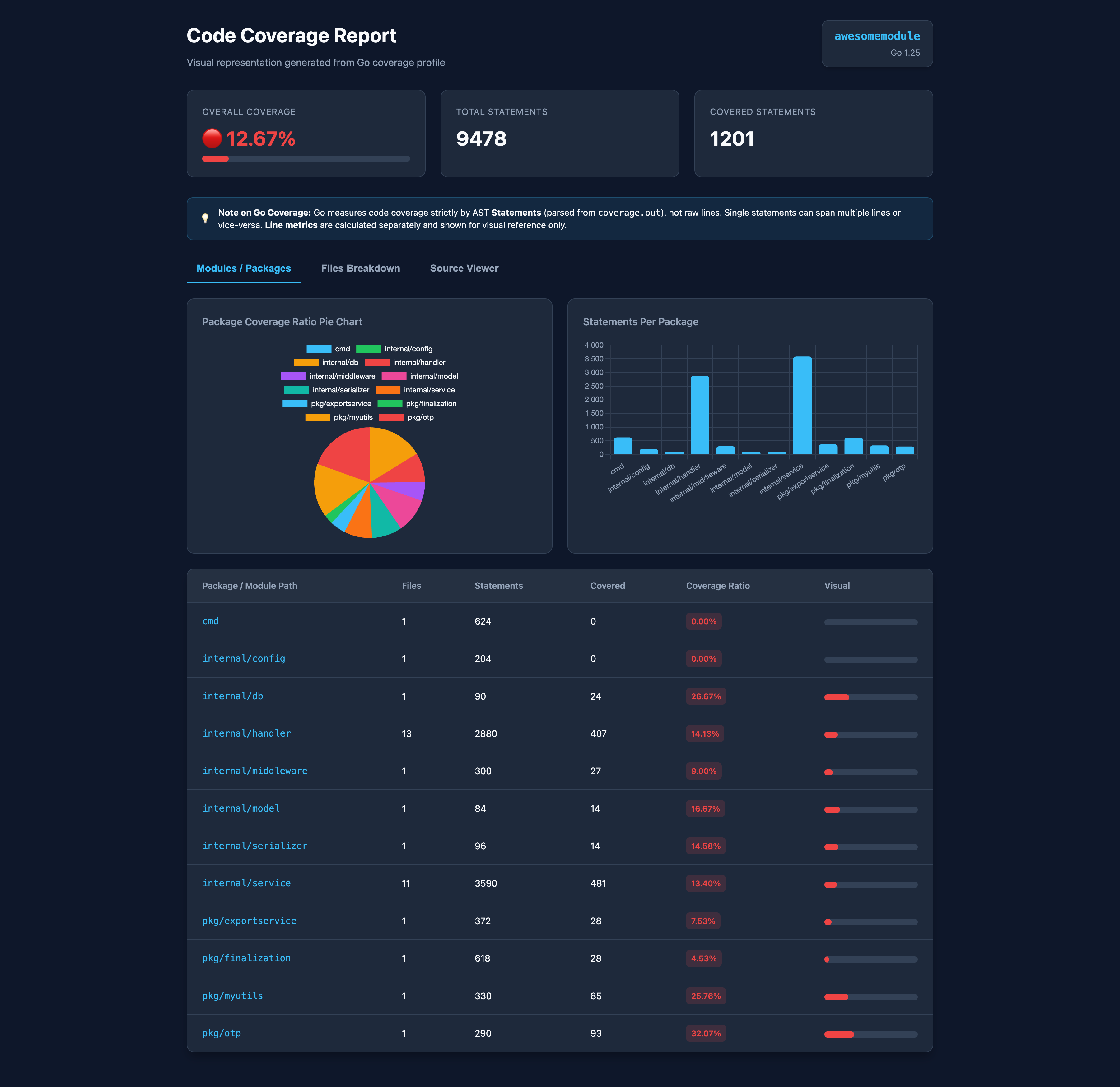

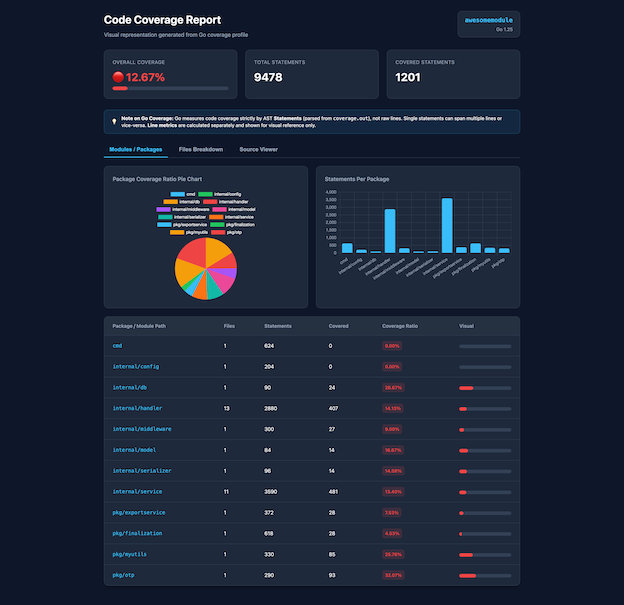

Modules Overview
Modules Overview
View Full Image ↗

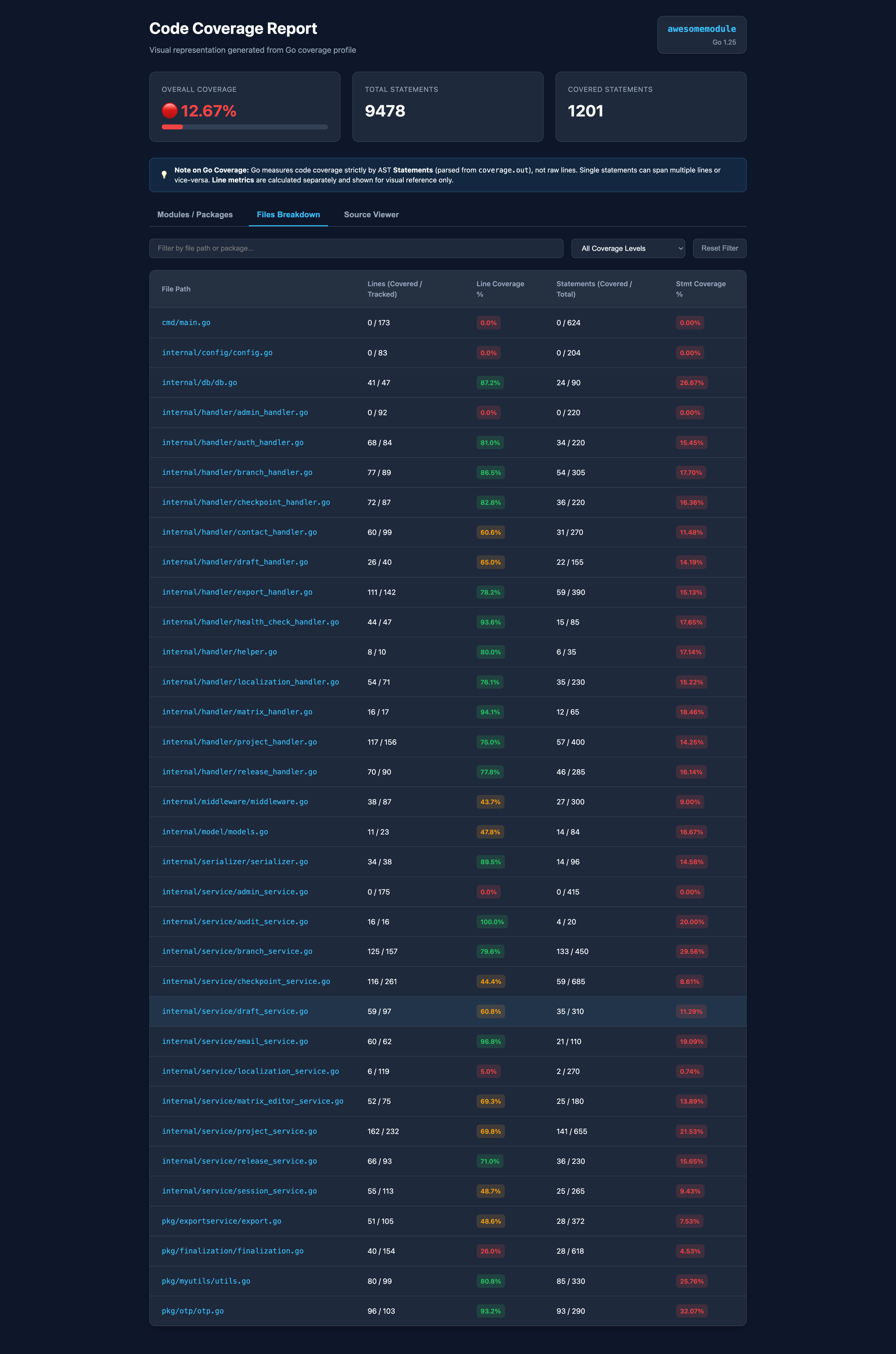

Files Breakdown
Files List & Filters
View Full Image ↗

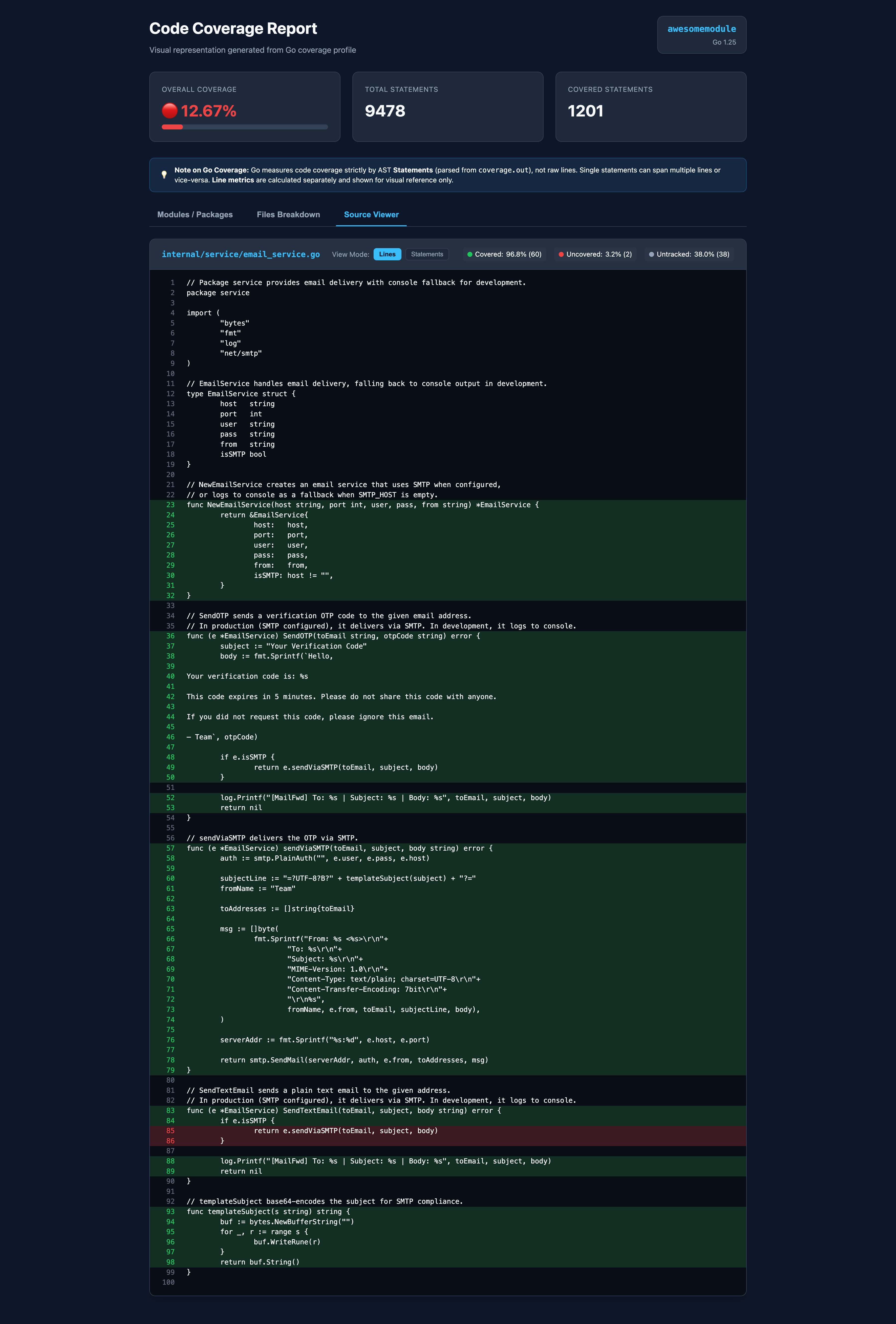

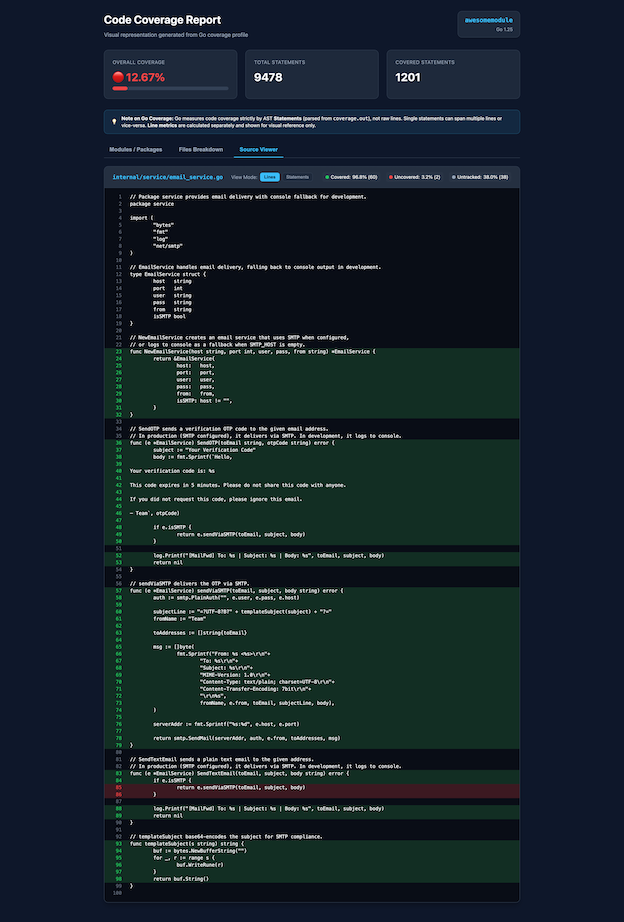

Source Code Viewer
Source Viewer Mode
View Full Image ↗

Capabilities

Key Features

  • Interactive Charts: Package coverage distribution pie charts and statement metrics powered by Chart.js.
  • Detailed File Breakdown: Tabular breakdown of line and statement coverage with real-time text searching and tier filtering (Full 100%, High ≥70%, Medium 40-69%, Low <40%, Uncovered 0%).
  • Interactive Source Viewer: Line-by-line and AST statement-level source code highlighting.
  • Progress Tracker: Checkboxes on packages and files to track refactoring progress with local persistence via localStorage.
  • Zero External Go Dependencies: Fast execution powered strictly by standard Go libraries (embed, html/template, os/exec).

Setup

Installation Guide

Make sure you have Go installed on your machine (version 1.18 or later).

Installing via go install

go install github.com/marudhupandiyang/gotestviz/cmd@latest

Installing from Source

git clone https://github.com/marudhupandiyang/gotestviz.git
cd gotestviz
go build -o gotestviz ./cmd

Execution

Usage & Commands

Flags Reference

Flag Description Default
-repo <path> Path to repository source directory . (Current Directory)
-cover <path> Path to existing coverage.out profile file <repo>/coverage.out

Auto-Run Tests & Open Dashboard

gotestviz runtest

Visualize Existing Profile

gotestviz -repo="/path/to/repo" -cover="/path/to/repo/coverage.out"

Local Development

Development Setup

git clone https://github.com/marudhupandiyang/gotestviz.git
cd gotestviz
go run ./cmd runtest

Open Source

Contributing

Contributions, suggestions, and bug reports are warmly welcome! Feel free to report issues or submit pull requests directly through GitHub:

Open an Issue on GitHub ↗
